Model NO.HFTB
Working ModeIntermittent
InstallationHorizontal
Power SourceMechanical
Warranty18 Months
Output TorqueHigher Output Torque
BrandElite/OEM
Drive TypeAir, Hydraulic, and Mechanical
BrakesDry Brakes
Input Speed3000rpm
OriginChina
Production Capacity2200/Month

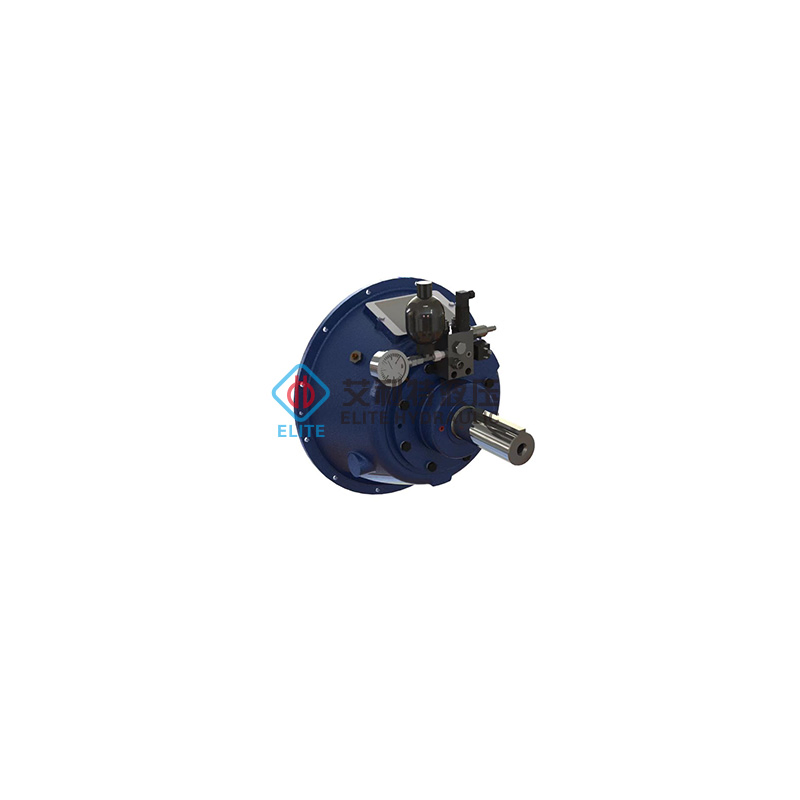

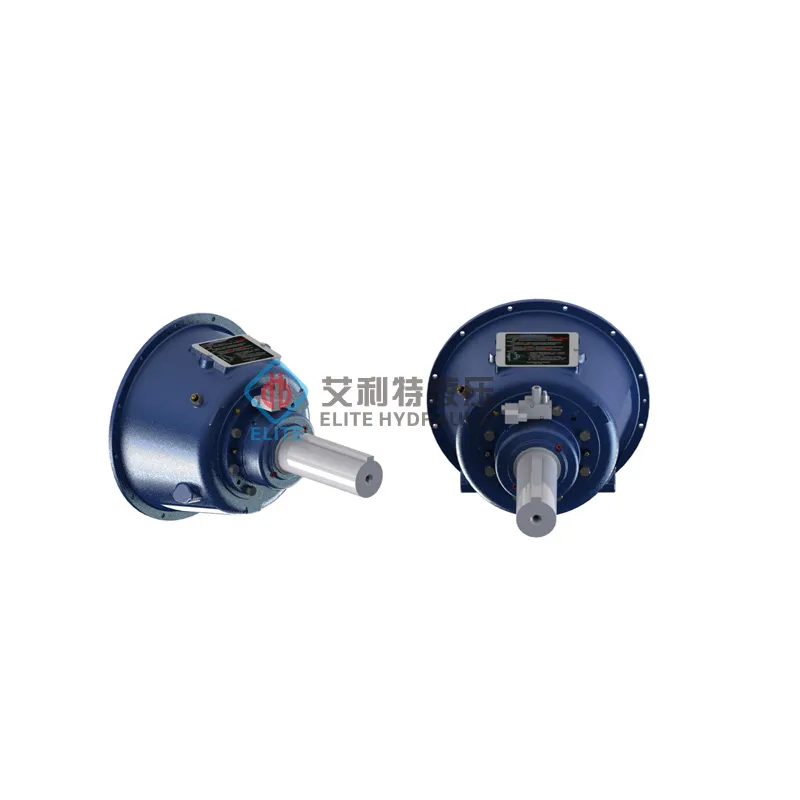

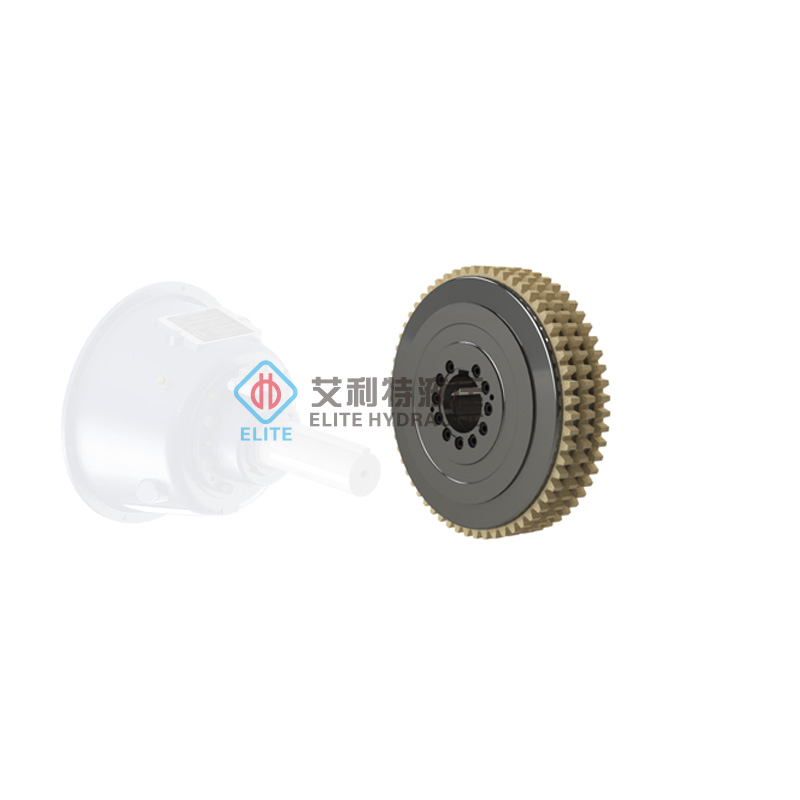

ELITE Self-Adjusting Bell Housing PTO Clutches are built for dry operation and higher horsepower, speeds, torque ranges and actuation pressures to suit your needs. Elite's effective design for bell housing clutches eliminates mechanical linkages, hand levers, and yokes. They can also be mounted directly onto the flywheel of a diesel or gasoline engine. These Self-Adjusting Bell Housing PTO Clutches are available with or without pilot bearings and additional modified configurations are available to meet your unique requirements.
| Model |
Housings |
Max. Torque |
Max. Speed |
Max. Power |
| MC111 | SAE 3/2 | 781 Nm | 2500 rpm | 136 KW |
| MC211 | SAE 3/2 | 1500 Nm | 2500 rpm | 262 KW |
| MC311 | SAE 3/2 | 2344 Nm | 2500 rpm | 409 KW |
| MC114 | SAE 1/0 | 1375 Nm | 2200 rpm | 211 KW |
| MC214 | SAE 1/0 | 2750 Nm | 2200 rpm | 422 KW |
| MC314 | SAE 1/0 | 4125 Nm | 2200 rpm | 634 KW |
| MC318 | SAE 0 | 9750 Nm | 2200 rpm | 1497 KW |
| HC211 | SAE 3/2 | 2800 Nm | 2500 rpm | 472 KW |
| HC311 | SAE 3/2 | 4219.2 Nm | 2500 rpm | 736 KW |
| HC214 | SAE 1/0 | 4950 Nm | 2200 rpm | 760 KW |
| HC314 | SAE 1/0 | 7425 Nm | 2200 rpm | 1141 KW |
| HC318 | SAE 0 | 17550 Nm | 2200 rpm | 2695 KW |
- Protecting your power system with advanced safety features
- Fully capable of pneumatic or hydraulic operation
- Equipped with high-quality friction pads for reliable and durable performance
- Dry friction plate design ensuring a simple and efficient system
- Adjustable gap settings for significantly extended lifespan
- Customizable interface for flexible application across different machinery
The ELITE Mechanical Power Take-Off is the solution with proven field performance in heavy-duty applications. It is tough enough to meet the high demands of wood chippers, rock crushers, asphalt grinders, pavement milling machines, water blasters, irrigation pumps, paver units and other industrial and construction applications.

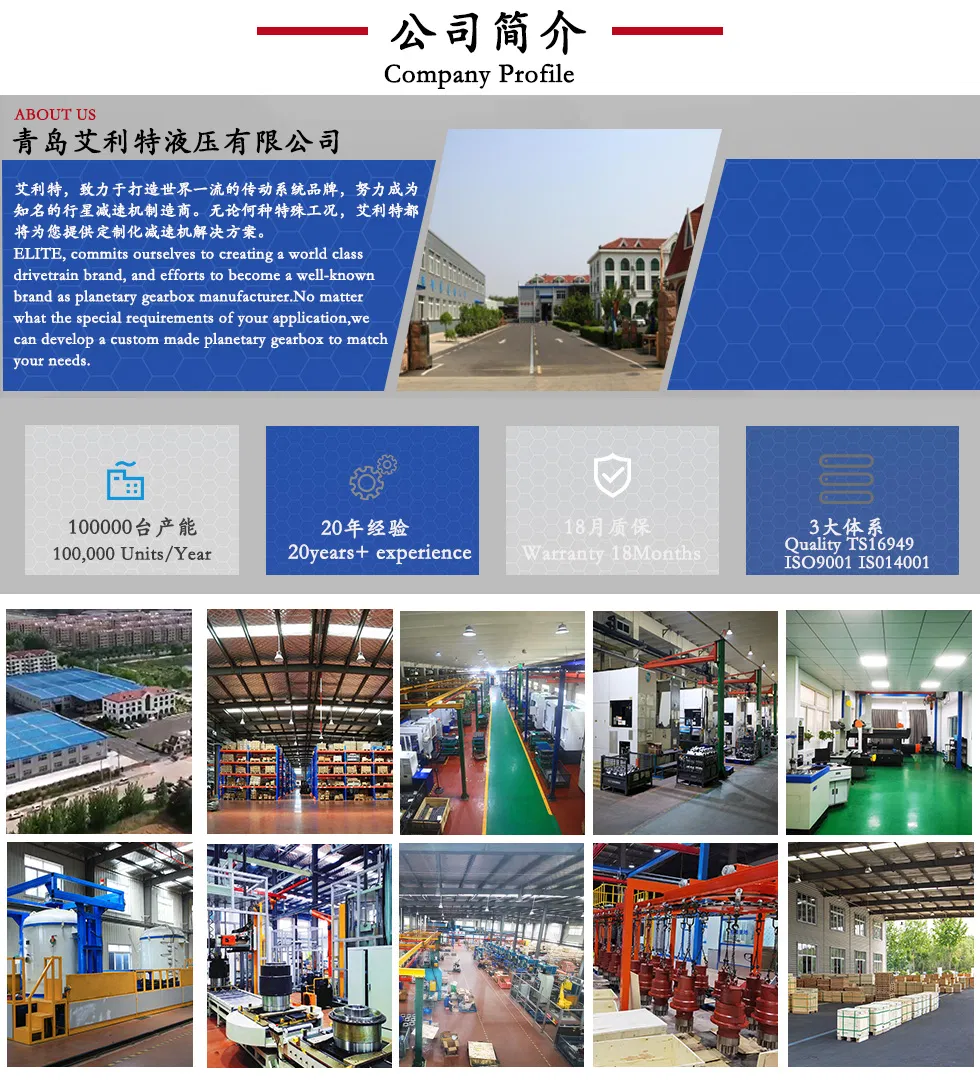

Elite, committed to building a world-class drivetrain brand, strives to become a well-known manufacturer of planetary gearboxes, pump drives, agv wheel drives, transmission, PTO clutches and axles. With more than 20 years of experience in transmission design and manufacturing, Elite provide customized gearboxes, pump drives, agv wheel drives, transmission and axle solutions for any specific application.
Frequently Asked Questions
Q1: What are the main applications for ELITE PTO clutches?
A: Our PTO clutches are designed for heavy-duty industrial and construction machinery, including wood chippers, rock crushers, irrigation pumps, and pavement grinders.
Q2: Can these clutches be used with different engine types?
A: Yes, they can be mounted directly onto the flywheels of both diesel and gasoline engines, providing versatile installation options.
Q3: How do self-adjusting clutches improve performance?
A: The self-adjusting design eliminates the need for manual linkages and hand levers, reducing maintenance time and ensuring consistent engagement pressure.
Q4: Are pilot bearings included with the PTO clutches?
A: We offer configurations both with and without pilot bearings to suit your specific drivetrain requirements.
Q5: What is the standard warranty period for your products?
A: Most of our PTO clutch models come with an 18-month warranty, reflecting our commitment to quality and durability.
Q6: Can Elite provide customized clutch solutions?
A: Absolutely. With over 20 years of experience, we specialize in providing modified and customized gearbox, drive, and clutch solutions for unique applications.
