Precast Concrete Construction Lifting Clutches Ring Clutch for Pin Anchor

Customization:	Available
After-sales Service:	Have After-Sales Service
Warranty:	5 Years Warranty

📋

Basic Information

Model NO.

HM

Application

Use with Spread Anchor System and Recess Former

Certification

CE, ISO

Material

Steel

Raw Material

Q345, 20mn2

Finish

Zinc Plated

Technics

Casting, Forging

Production Cap.

5,000,000/Month

🏗️

Product Description

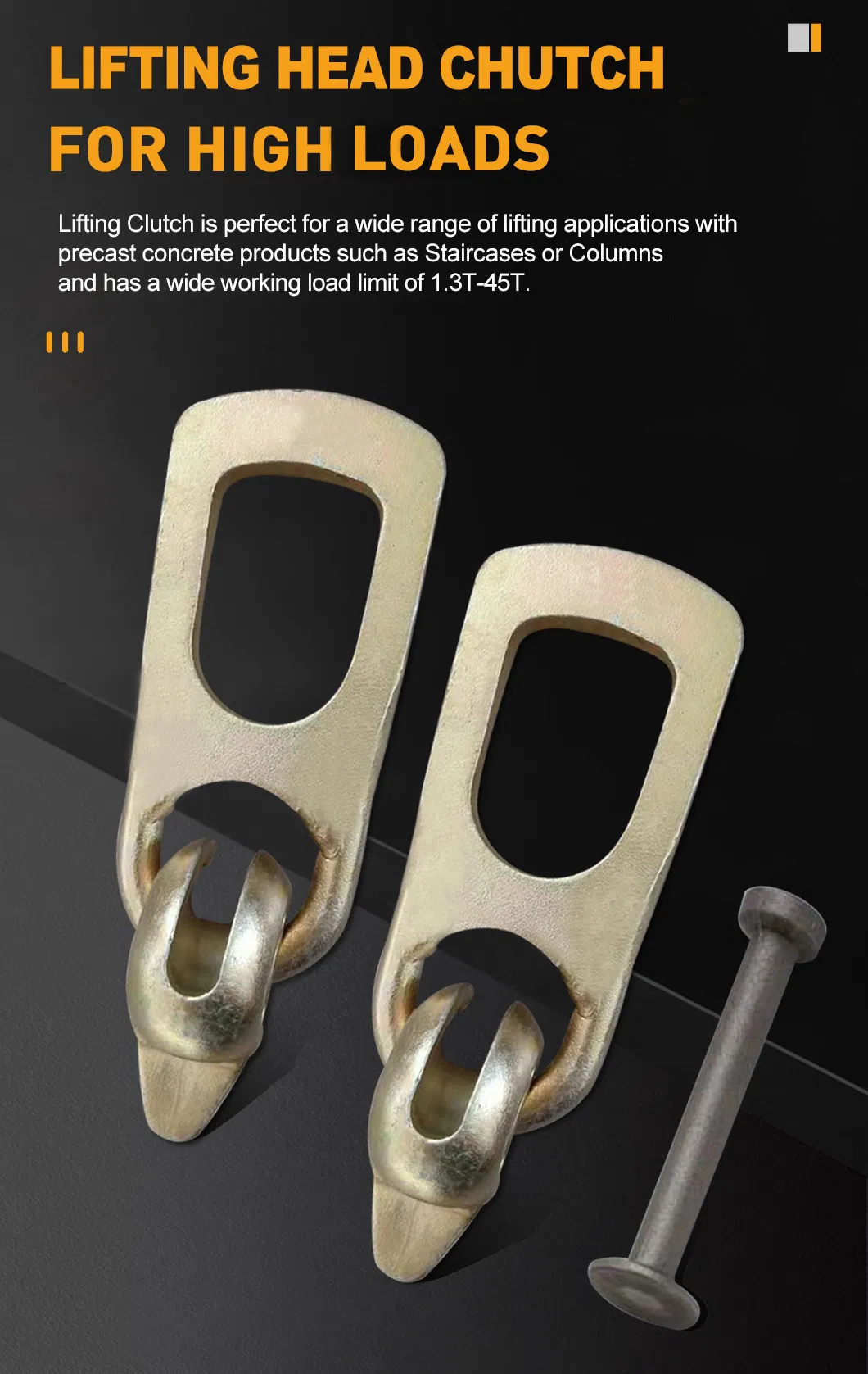

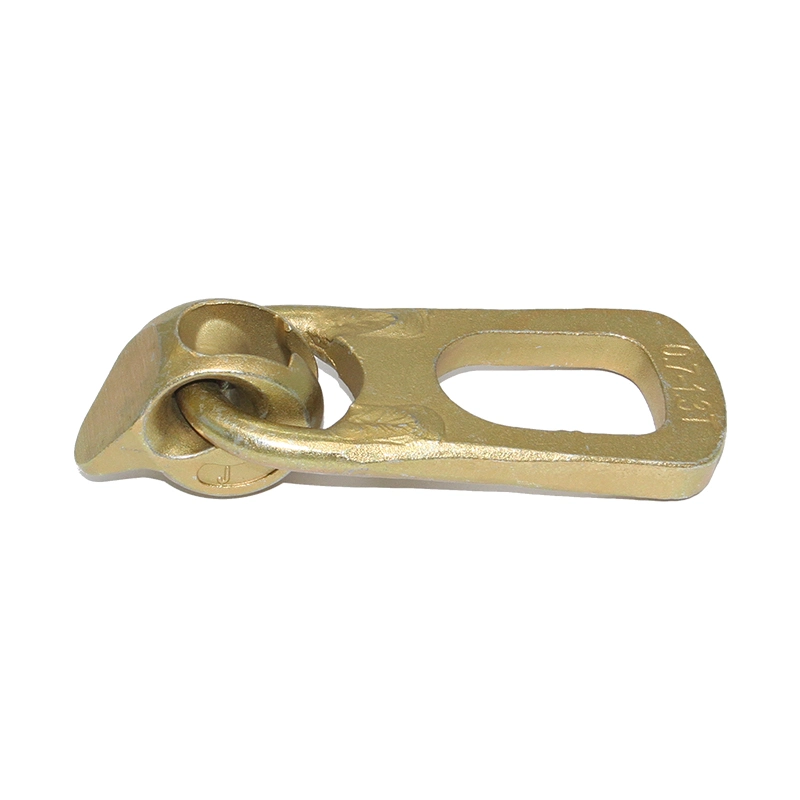

Precast Concrete Lifting Clutch for Lifting Anchor:

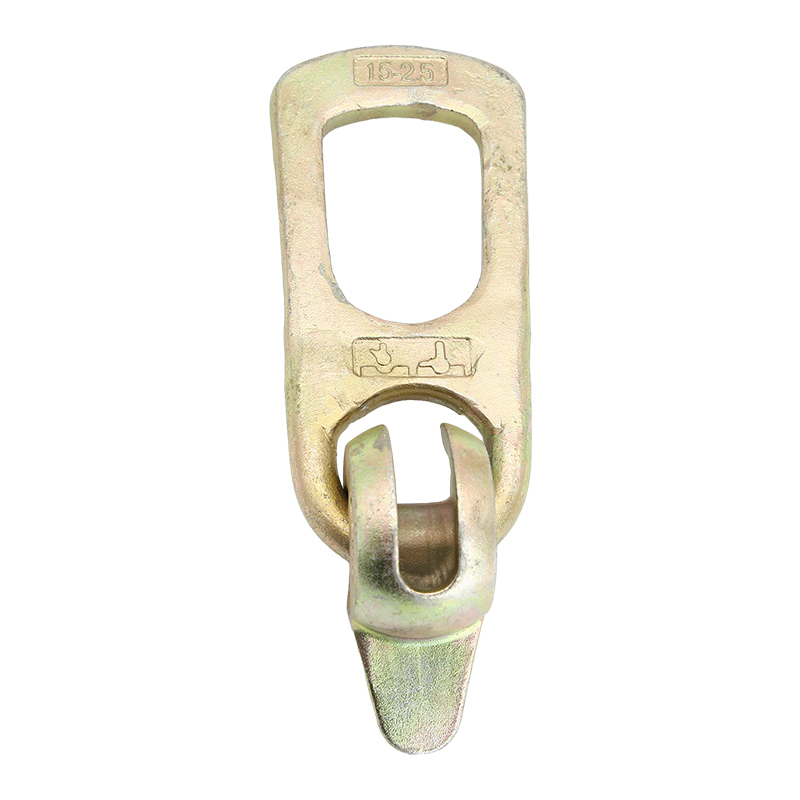

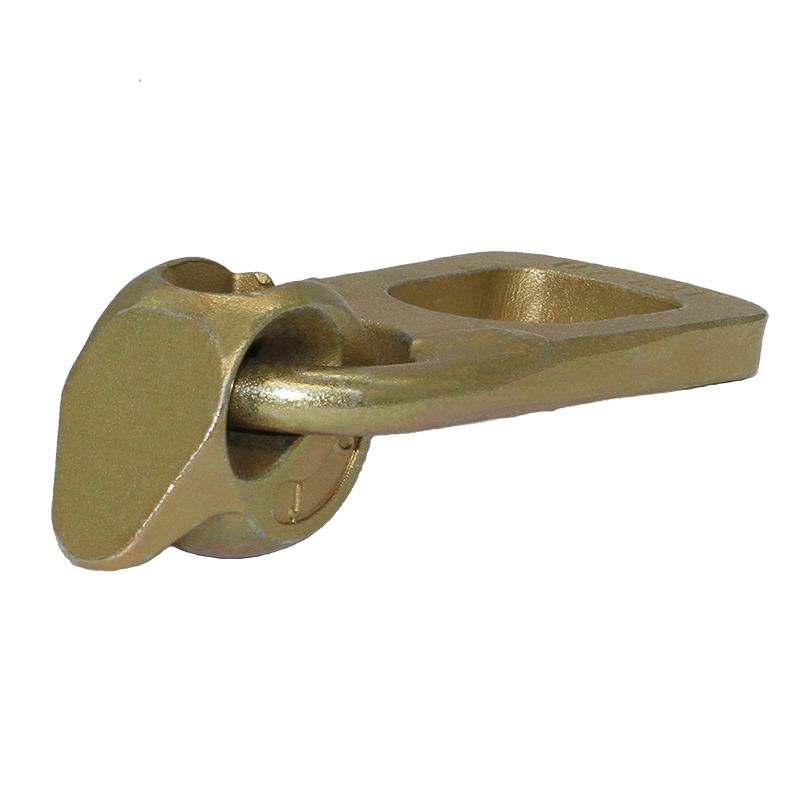

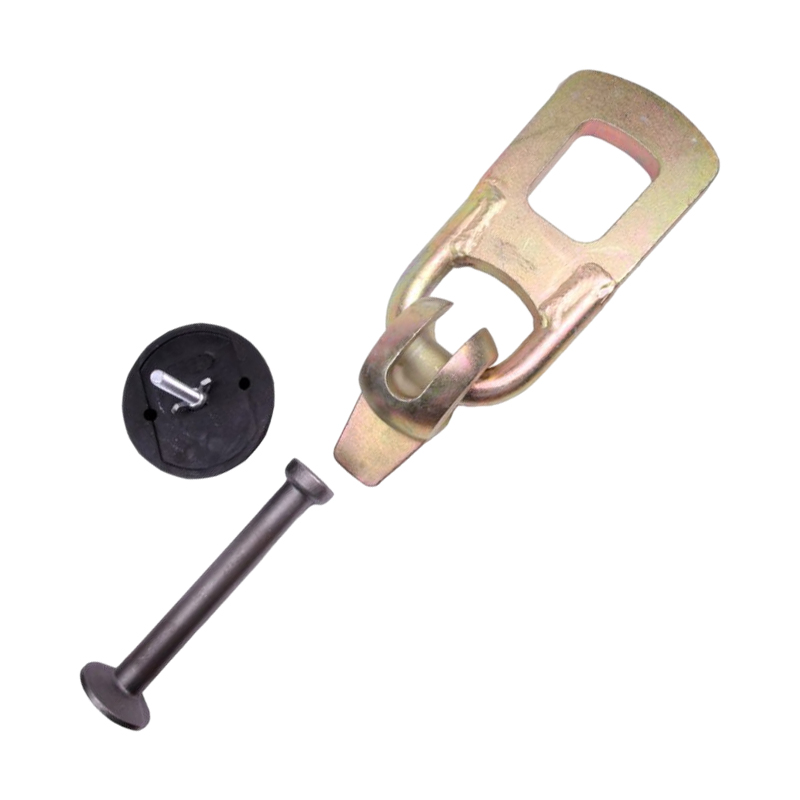

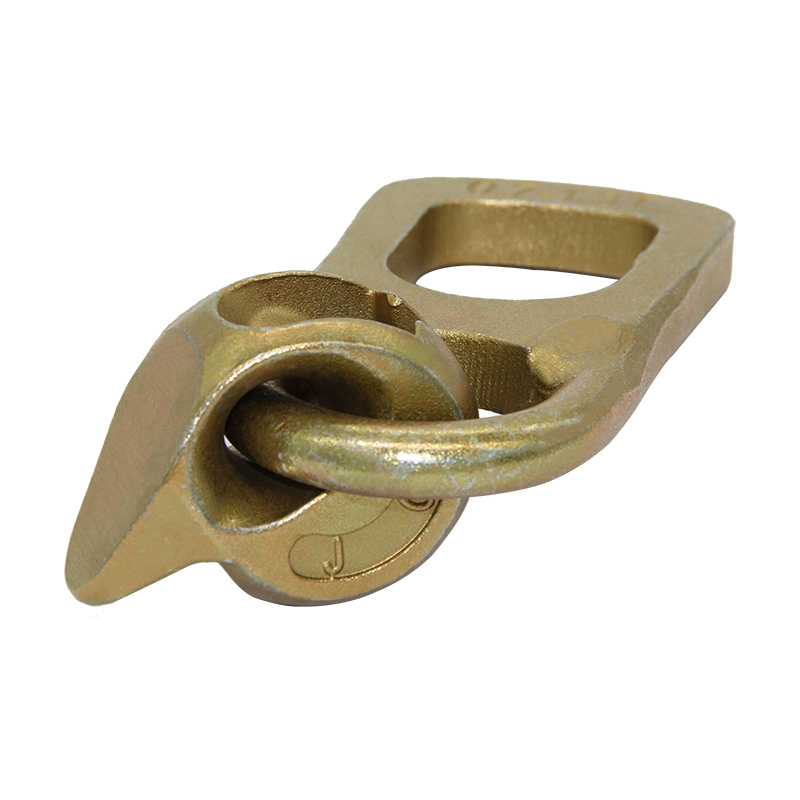

The Lifting Clutch consists of a round main body with a protruding lever arm and a high strength bail. The main body has a "T" slot that engages the head of a dogbone anchor. The combined rotation capabilities of the main body and the bail allows a precast panel to be lifted, turned, tilted and/or rotated while under load.

📊

Product Parameters

Product Model	Axial Capacities Load (KGS)	Dimensions (mm)						Weight (KG/PC)
Product Model	Axial Capacities Load (KGS)	a	b	c	e	f	g	Weight (KG/PC)
TH1.3	1300	47	75	71	45	33	165	1.0
TH1.5-2.5	2500	64	98	85	55	42	205	1.6
TH3.0-5.0	5000	70	118	88	66	57	240	3.3
TH6.0-10.0	10000	95	160	121	117	73	348	9.6
TH15-20	20000	118	186	150	155	110	441	24.5

📦

Packaging & Shipping

You can enjoy professional freight consulting services from us. Our freight consulting center provides you with services based on the "C-Q-T" standard. We recommend convenient transportation methods according to your city to ensure efficient delivery. We also provide complete customs clearance information and regular dynamic updates on cargo transportation, arrival locations, and navigation routes.

🏭

Production Display

📜

Exhibition & Certificate

❓

Frequently Asked Questions

Are you a trading company or factory?

We are a comprehensive enterprise that not only has its own factory but also partner factories of the same standard as ours. We maintain a complete supply chain to provide comprehensive services.

Is it possible to track production progress without visiting?

Yes. Once cooperation is reached, we plan a production solution for you. The quality inspection team tracks the process and provides regular feedback, including pictures, videos, and video calls to show the real status of your order.

What if I am not satisfied with the parts received?

For small parts, we offer pre-production sample delivery for testing. Mass production starts only after your approval. For large parts, we recommend a single piece for trial. If any quality problems occur, we take full responsibility and negotiate a solution.

How do you ensure the quality of the parts?

Quality is ensured through a multi-step process: sample testing, production tracking with data feedback, on-site inspections via video calls, and a final pre-shipment inspection. We also provide quality assurance services for all products.

Can you offer a better price for large quantity orders?

Yes. We provide competitive pricing for sincere cooperation. Please send us your drawings, requirements, and quantities. Our technical team will communicate details to provide the most suitable production solution and quotation.
