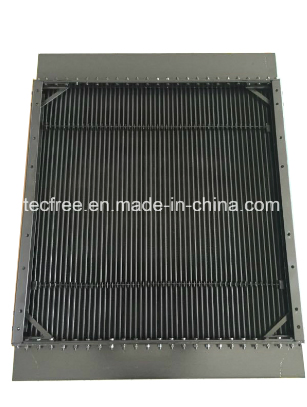

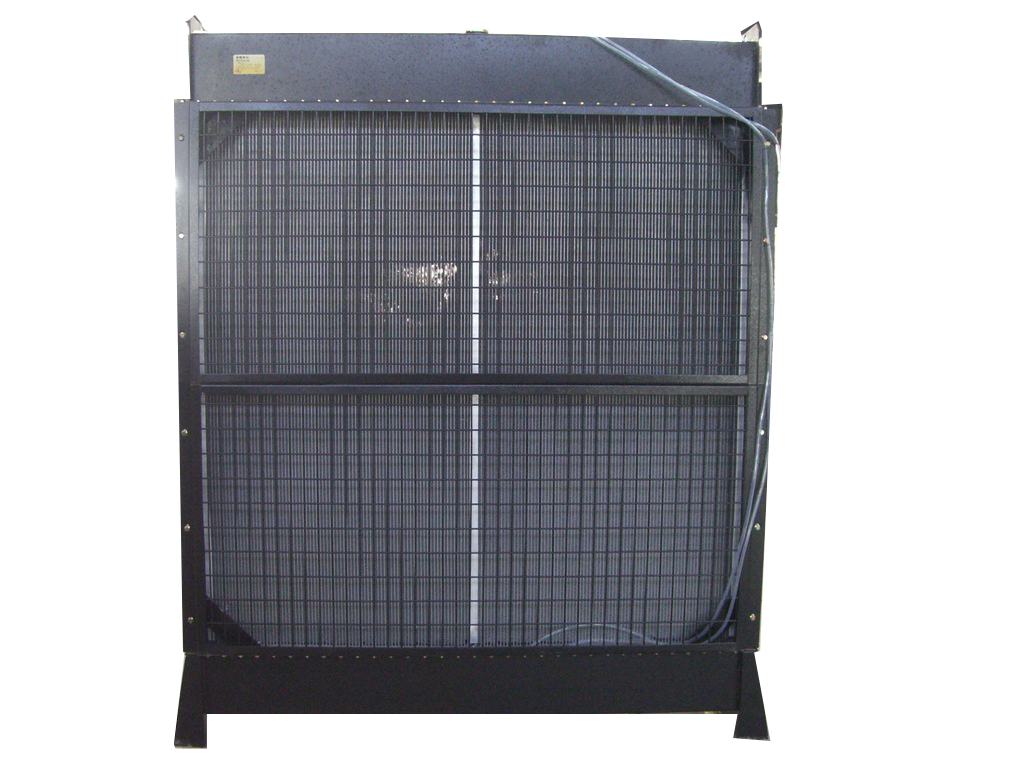

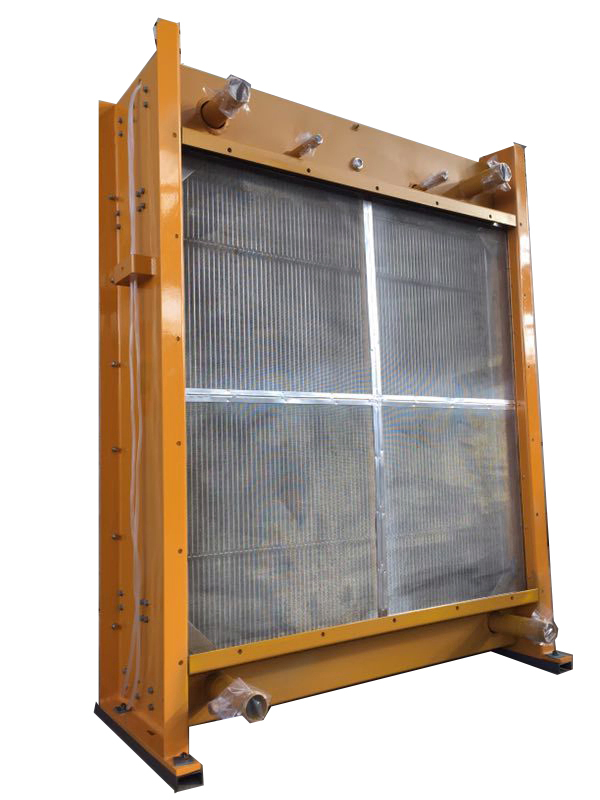

Alu New Style Air Cooled Anti-Vibration &Dust Custom Heat Exchanger Radiator

1 / 5

Alu New Style Air Cooled Anti-Vibration &Dust Custom Heat Exchanger Radiator

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

JC2112-38Y

Stroke

Four Stroke

Cooling Method

Air Cooled

Output Type

AC Three Phase

Conditions of Use

Land Use

Usage

Common Units

Landuse Type

Ordinary

Excitation Mode

AC Rotating Exciter

Max Dimension

4000*4000*236mm

Warranty

2 years

Power Range

100-3000kw

Patent No.

Zl201320830624.7

Transport Package

Ply Wooden Case

Specification

Full Aluminum

HS Code

87089190

Product Description

TRADITIONAL RADIATOR WORK PROCESS

1 tube making → 2 fin making → 3 material cleaning → 4 core assembly → 5 brazing → 6 connectors welding → 7 tanks welding → pressure test → painting → package

NEW STYLE RADIATOR WORK PROCESS

1 tube making → assembly → connectors welding → tanks welding → pressure test → painting → package

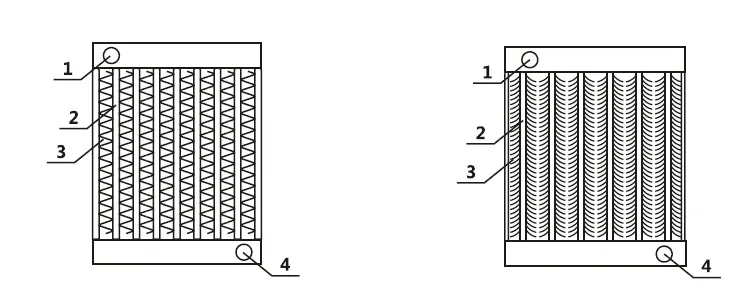

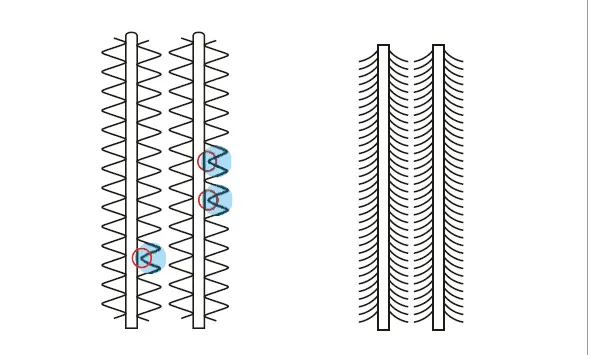

TRADITIONAL (Left) vs NEW STYLE (Right)

TRADITIONAL RADIATOR

Solder can create thermal resistance between tube and fin.
Brazing process cannot ensure 100% coherence (invalid heat transfer areas).
Reduced heat rejection efficiency.
Aluminum alloy (3003 & 4004) is easily damaged during transport or operation vibration, leading to leakages.

NEW STYLE RADIATOR

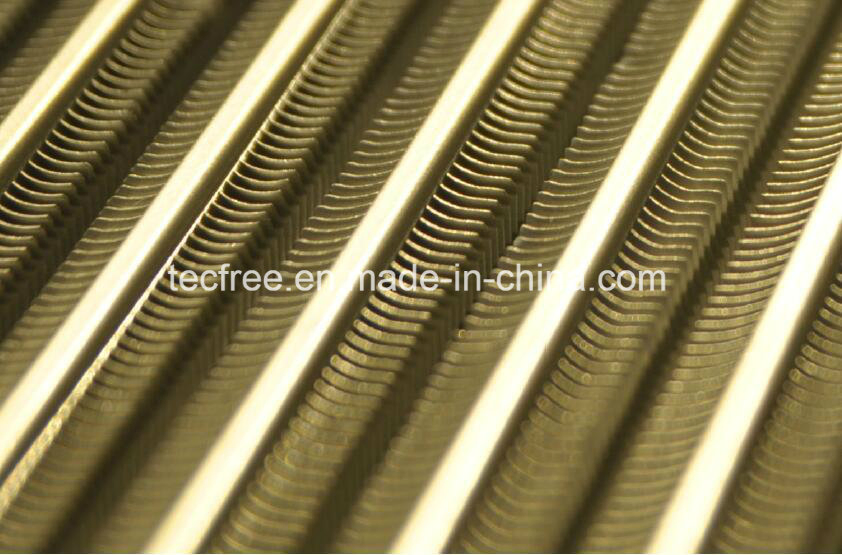

Fin and tube integration design avoids thermal resistance.
High heat conductivity without brazing quality issues.
Heat rejection rate increases by 10-20% in the same dimensions.
Made of Aluminum alloy 6063, making it tough and durable.

Core Competitiveness

Max Dimension
4000mm*4000mm*236mm

Easy Maintenance
Clean with high pressure water gun

High Pressure
Stand up to 100bar fluid pressure

Durability
Anti-mechanical shaking model

Adaptability
Suitable for deserts, forests & highlands

Frequently Asked Questions

What are the main advantages of the integrated fin and tube design?

The integrated design eliminates thermal resistance typically found in traditional brazed radiators and increases the heat rejection rate by 10-20% within the same physical dimensions.

How durable is the new style radiator compared to traditional ones?

It is constructed from 6063 aluminum alloy, which is significantly tougher and more durable. It features an anti-mechanical shaking design, making it more resistant to vibration and transport damage.

What is the maximum pressure these radiators can handle?

These units are engineered to withstand internal fluid pressures of up to 100bar, making them suitable for high-demand industrial applications.

Are these radiators suitable for use in extreme environments?

Yes, they are specifically designed for extremely harsh working conditions, including highlands, forests, and desert environments.

How can I clean the radiator fins?

Maintenance is straightforward; the robust design allows you to clean the fins directly using a high-pressure water gun without damaging the structure.

What is the maximum production size available?

We can produce radiators with maximum dimensions up to 4000mm x 4000mm x 236mm to accommodate large-scale cooling requirements.
