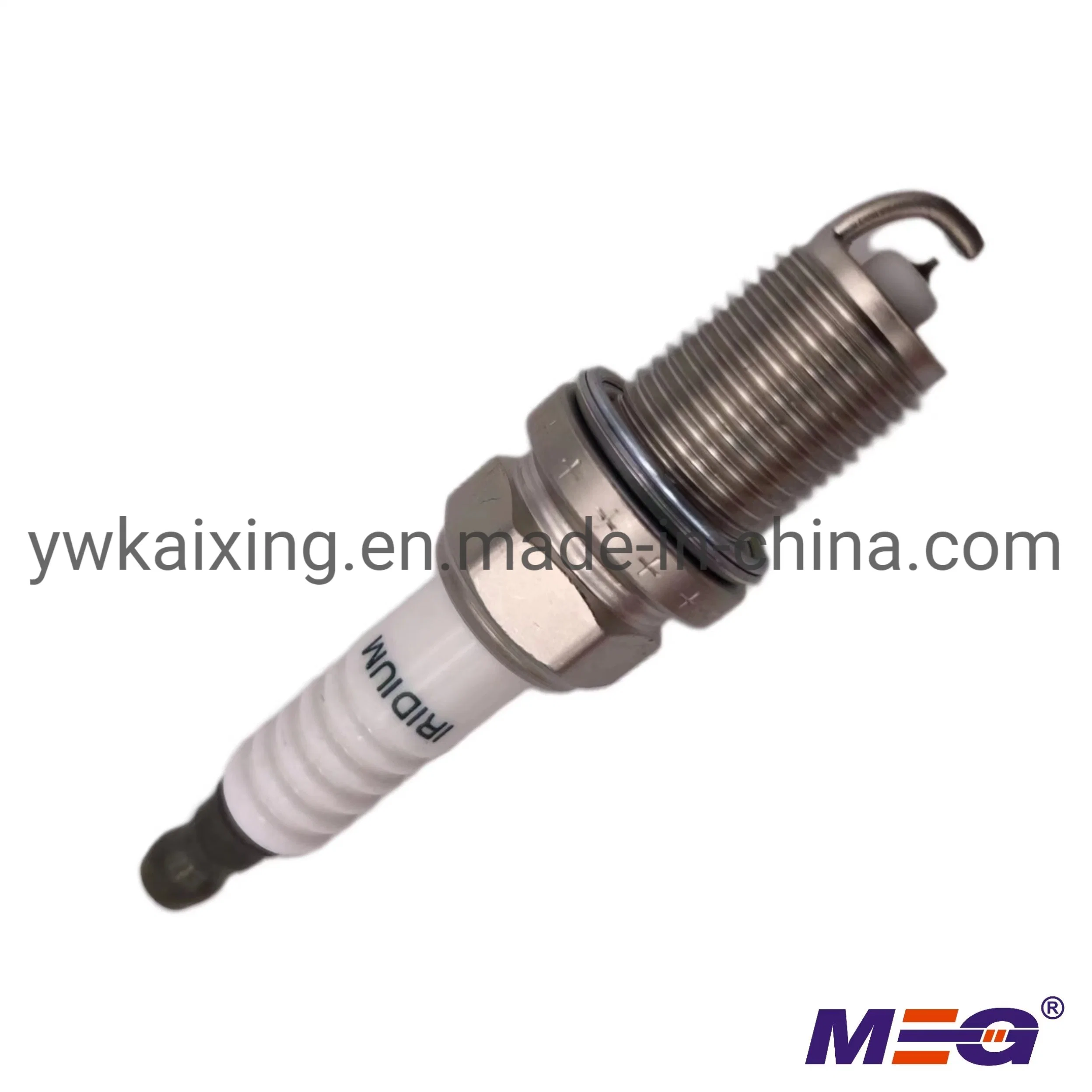

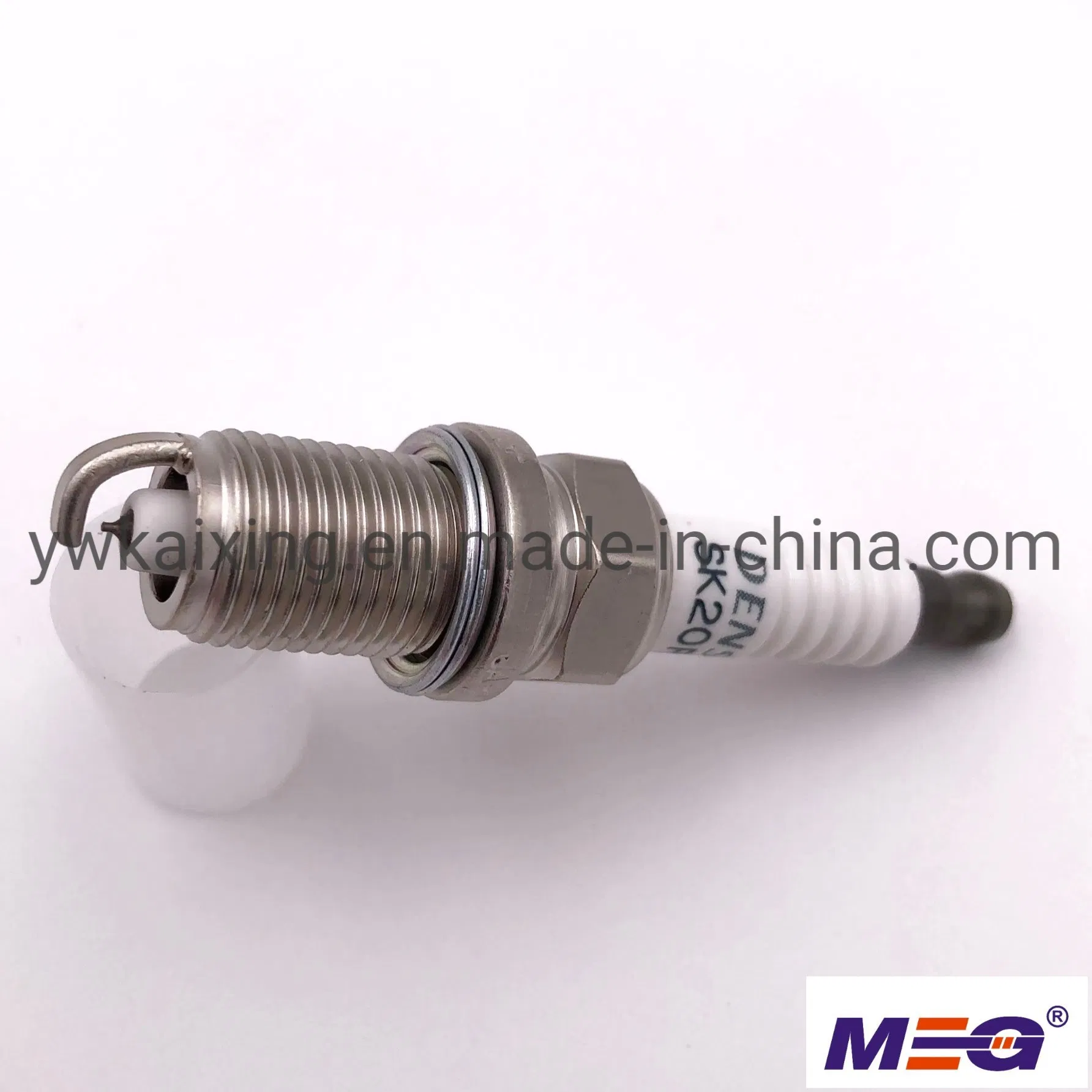

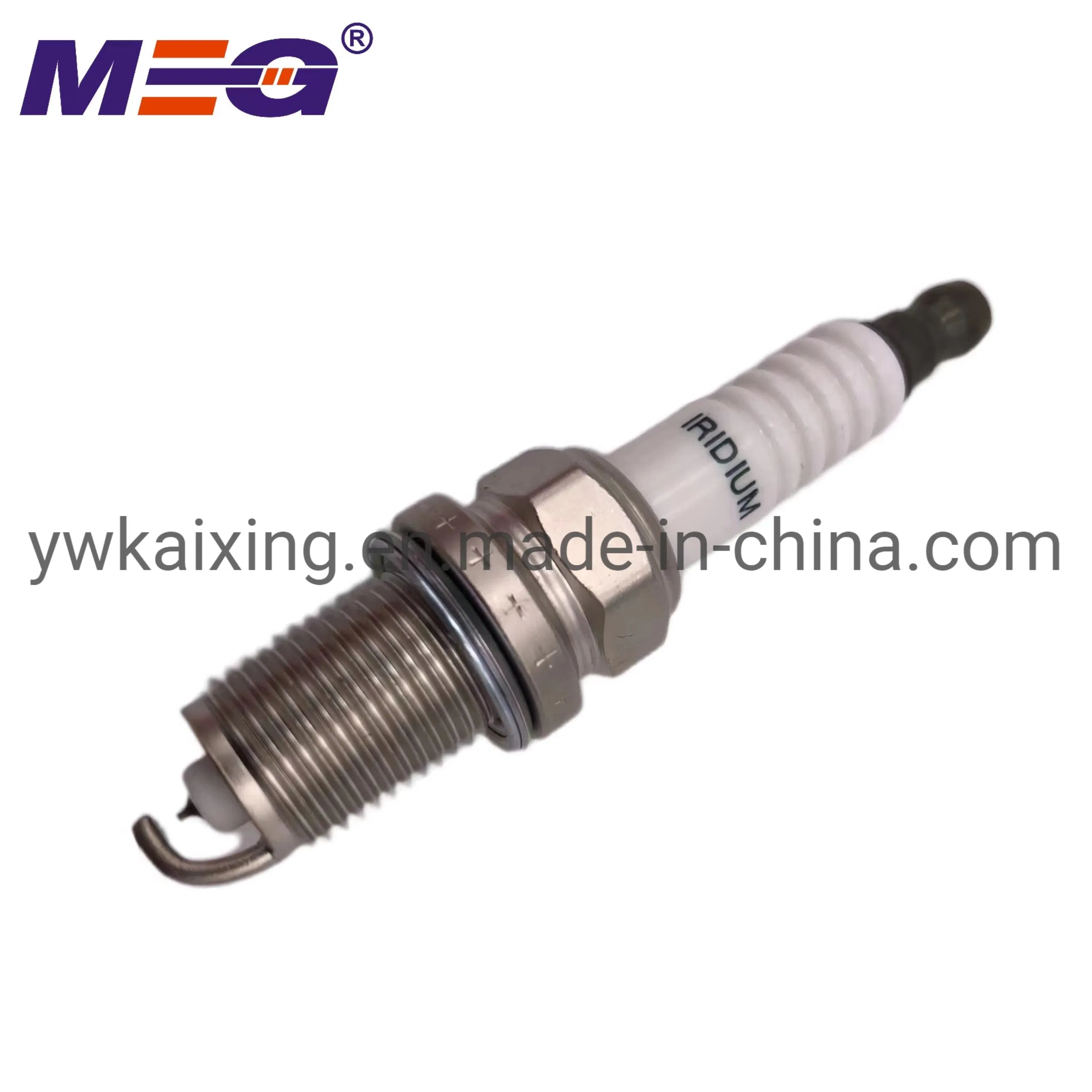

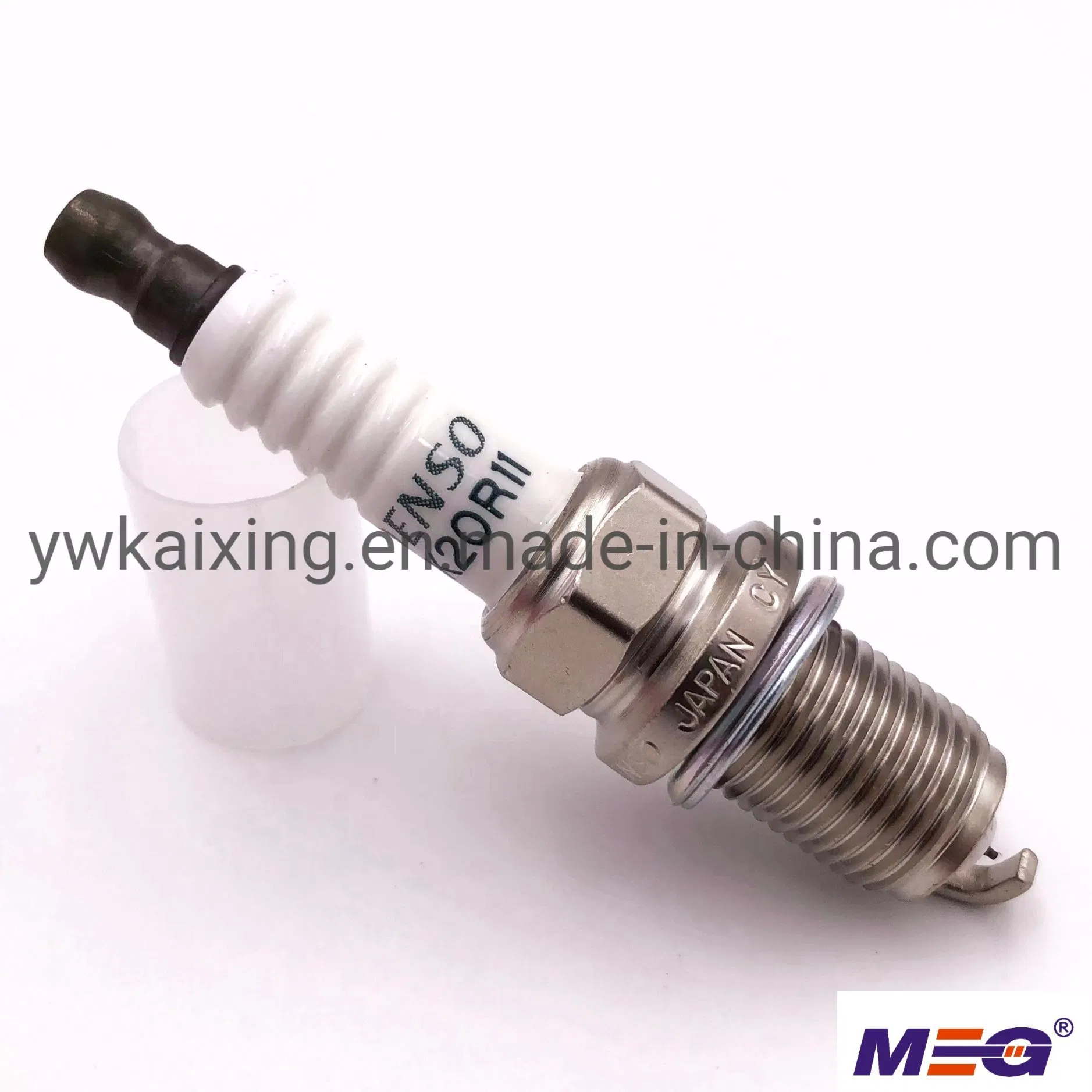

Factory Price Good Quality Iridium Platinum Spark Plugs 90919-01210 Sk20r11

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info.
Model NO.SK20R11 90919-01210
Suitable for Car BrandsToyota Lexus
Car ModelCamry RAV4 Tundra Sienna
TypeDistributorless Ignition System
ComponentSpark Plug
CertificationTS16949, ISO9001: 2000
MaterialIridium
Manufacturer Part Number90919-01210 Sk20r11
OEMAccept
PackageStander Packing & Customized
Delivery Time5~7 working Days
Stock ItemYes
Production Capacity5000PCS/Day
Product Description
Spark Plug Banner

Description Highlights:

  • 0.7mm Iridium Tipped Laser Welded Fine Wire Center Electrode and Platinum Tipped Ground Electrode
  • Machine Rolled Threads Prevent Seizing or Cross Threading During Installation and Removal
  • 100% Pre-Fired to Assure the Highest Quality Possible
  • Purified Alumina Powder Insulator Provides Exceptional Strength and Thermal Conductivity
  • Five-Rib Insulator Prevents Flashover
  • Copper-Glass Seal Bonds Center Electrode and Insulator for a Gas-Tight Seal

Technical Specifications:

Shell:
  • Thread Size: 14mm
  • Thread Pitch: 1.25mm
  • Seat Type: Gasket
  • Resistor: 5K Ohm
  • Reach: 19mm (3/4")
  • Hex Size: 5/8" (16mm)
  • Gap: 1.1mm (.043")
Electrode & Performance:
  • Center Material: Iridium
  • Center Size: 0.7mm
  • Ground Material: Platinum
  • Heat Range: 20
  • Longevity: 30,000-50,000 km
Product Detail 1
Product Detail 2

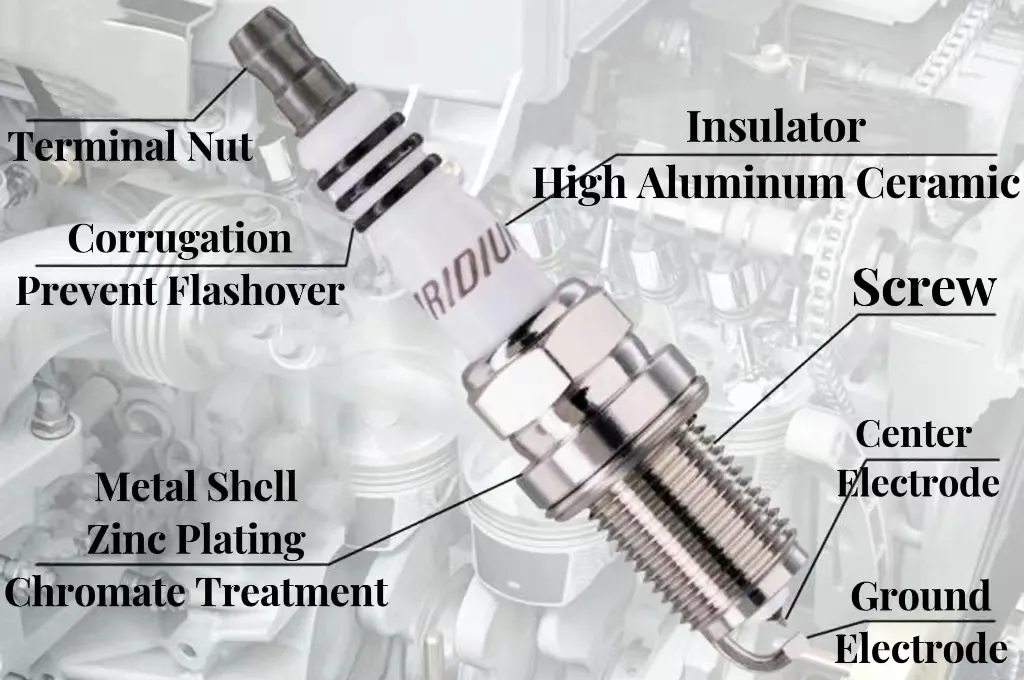

Product View

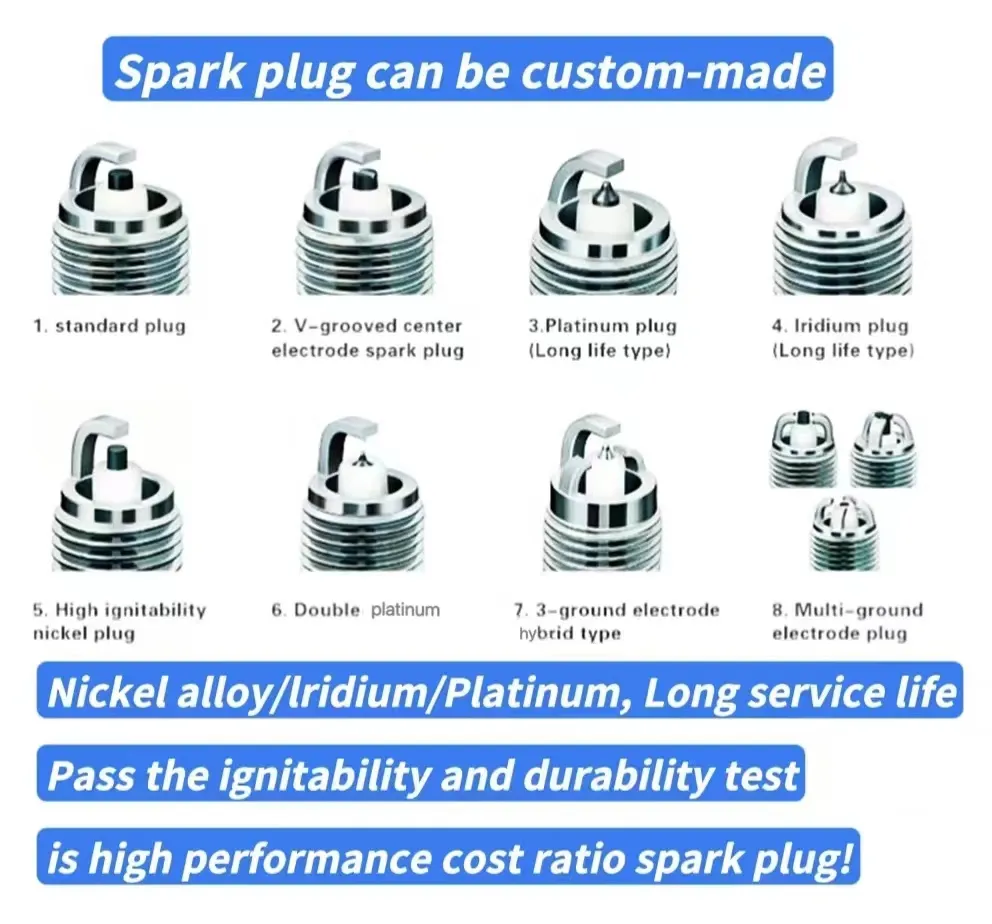

Product Detail 3

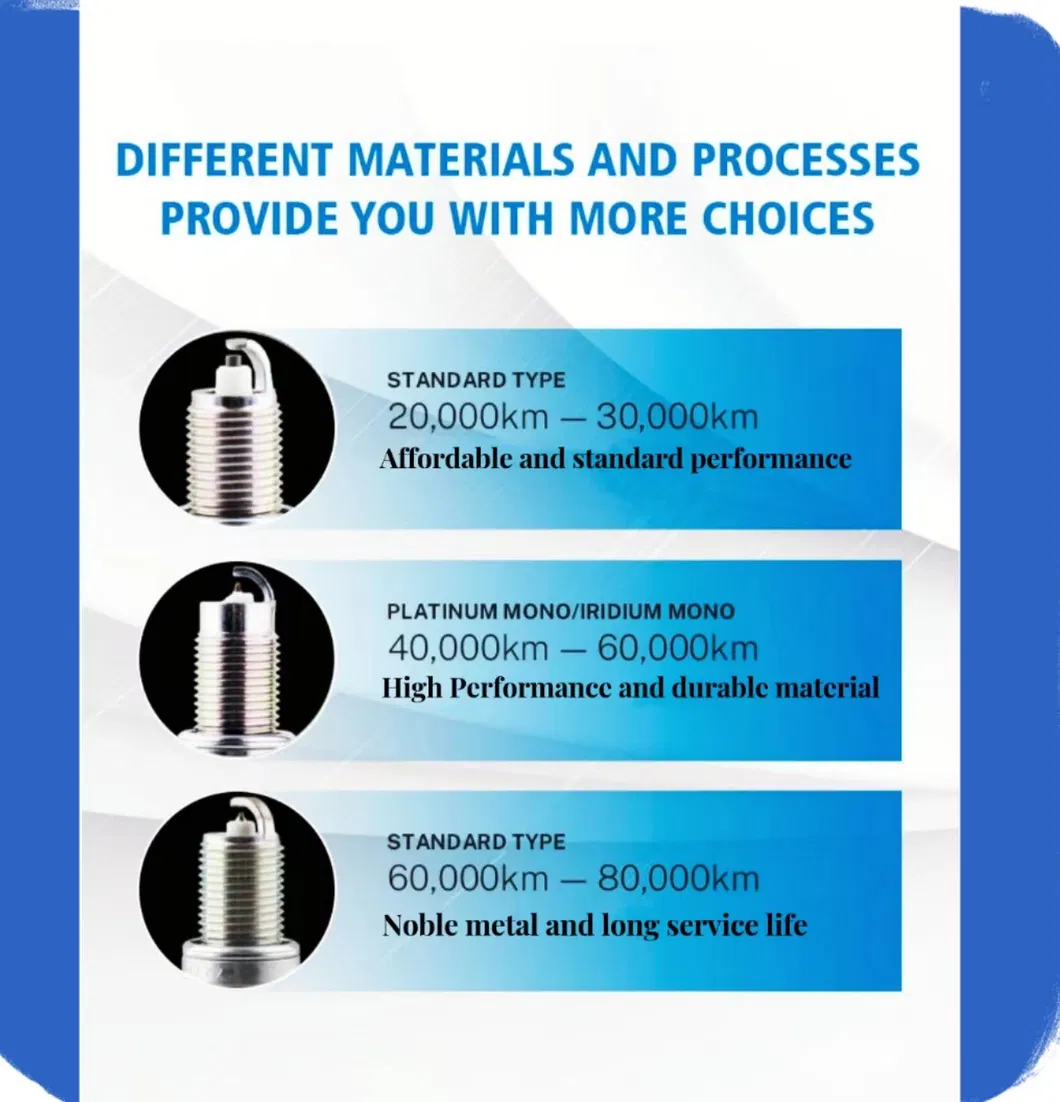

Product Detail 4

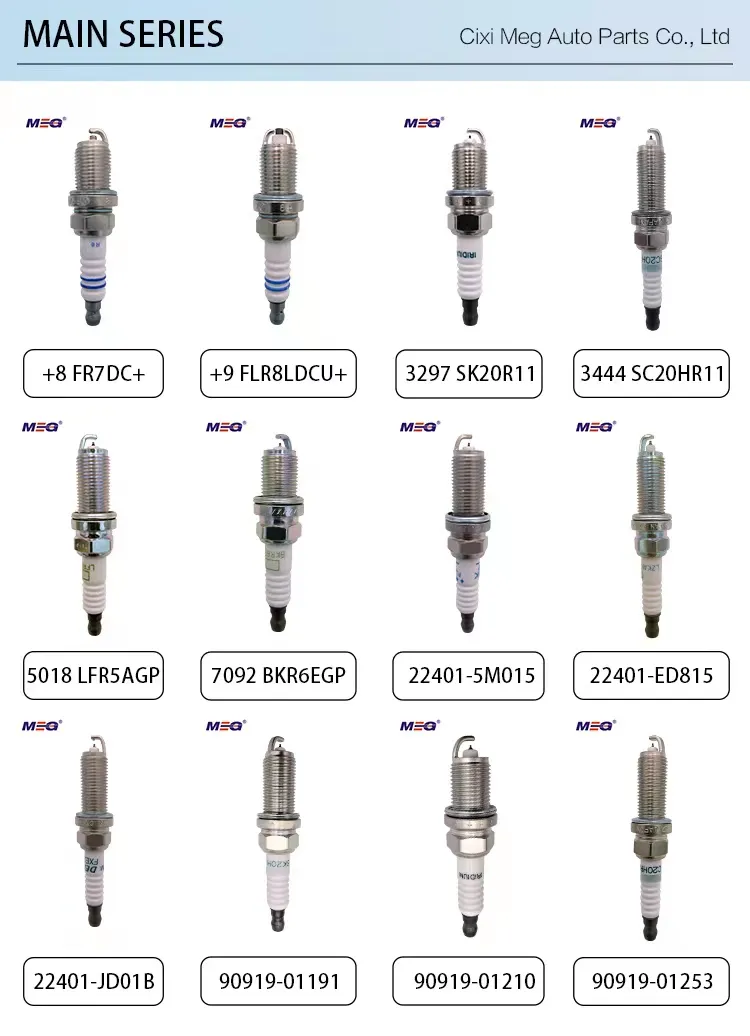

Comparison Chart
Profile

We are a modern enterprise integrating product development, production, sales and after-sales. Our primary focus is on delivering high-performance automotive components including spark plugs, ignition coils, and glow plugs.

  • Spark Plugs: We use high-quality raw materials including iridium center electrodes. These provide a service life of approximately 50,000-80,000km, improving fuel economy and engine performance.
  • Ignition Coils: Primary and secondary windings are made of high-quality copper with high-voltage enamel coating and superior insulation.
  • Glow Plugs: Feature high-quality double wire with a rapid 3-second heat-up time and a service life of about 20,000 cycles.

Adopted world-advanced technology and supported by an experienced production team, we emphasize quality management and service. Our products have gained a solid reputation across South America, North America, Asia, the Middle East, and Africa.

Production Facility
Manufacture Process

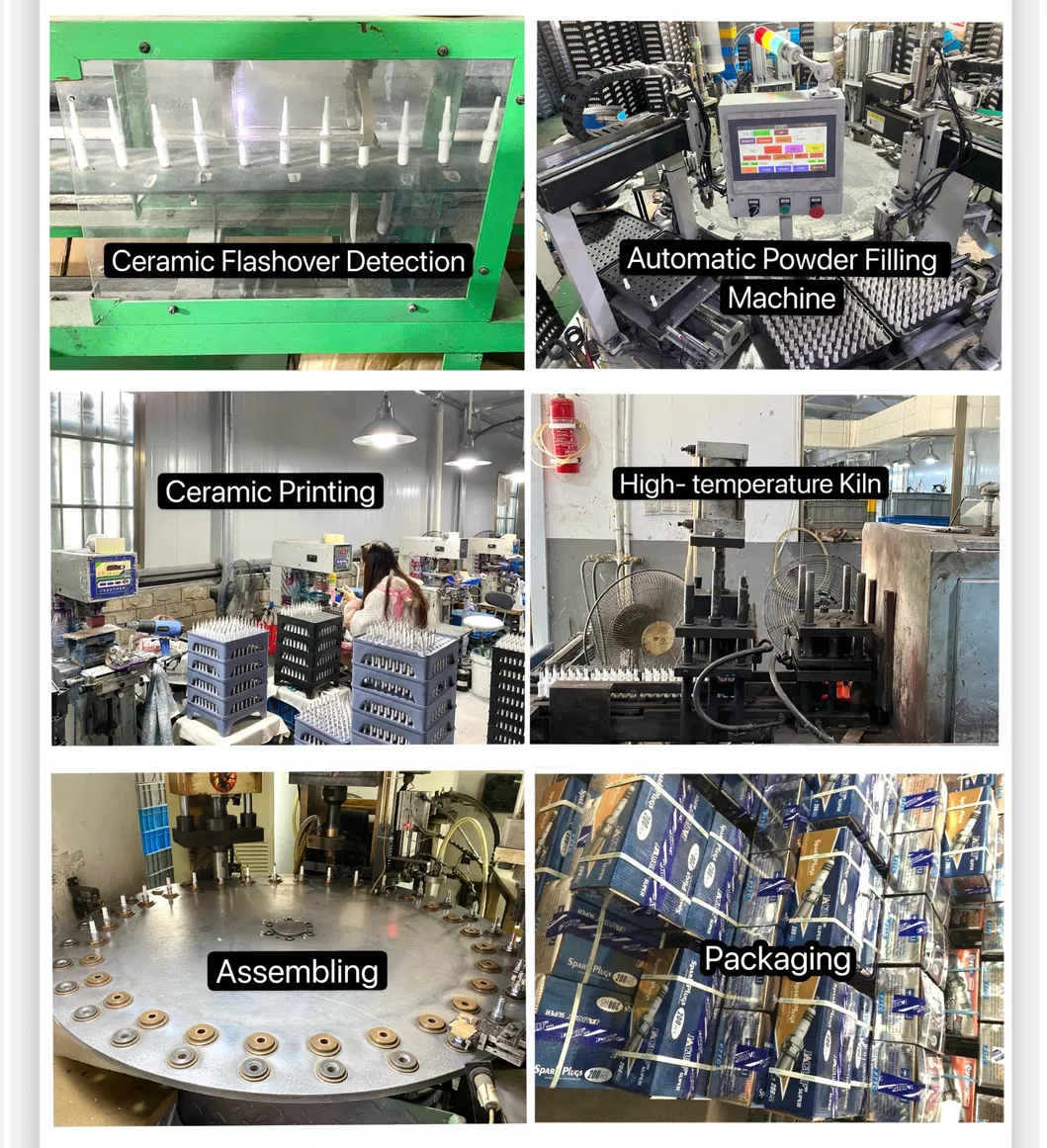

Manufacture Flow
Exhibition
Exhibition 1
Exhibition 2
Frequently Asked Questions
What is the expected service life of these Iridium spark plugs?
The iridium center electrode ensures a long service life of approximately 50,000 to 80,000 kilometers under normal driving conditions.
Are these spark plugs compatible with Toyota and Lexus models?
Yes, they are specifically designed for car brands like Toyota and Lexus, including popular models such as Camry, RAV4, Tundra, and Sienna.
What materials are used for the electrodes?
The center electrode is made of high-grade Iridium (0.7mm fine wire), and the ground electrode is platinum-tipped for maximum durability and spark efficiency.
What are the recommended torque specifications for installation?
For Cast Iron cylinder heads, the recommended torque is 26-30 lb. ft. For Aluminum cylinder heads, it is 15-22 lb. ft.
How do these spark plugs improve engine performance?
The fine-wire iridium tip requires less voltage to spark, which improves ignition reliability, enhances fuel economy, and optimizes engine power.
Do you accept OEM orders?
Yes, we accept OEM requests and can provide customized packaging according to your specific requirements.
